Kubeconfig

Portainer can act as a proxy for other Kubernetes management tools, providing access to the Kubernetes cluster while still retaining the security and governance that Portainer provides. A user can download their own kubeconfig file and use it with their favorite tool to access the Kubernetes cluster with only the permissions afforded to that user.

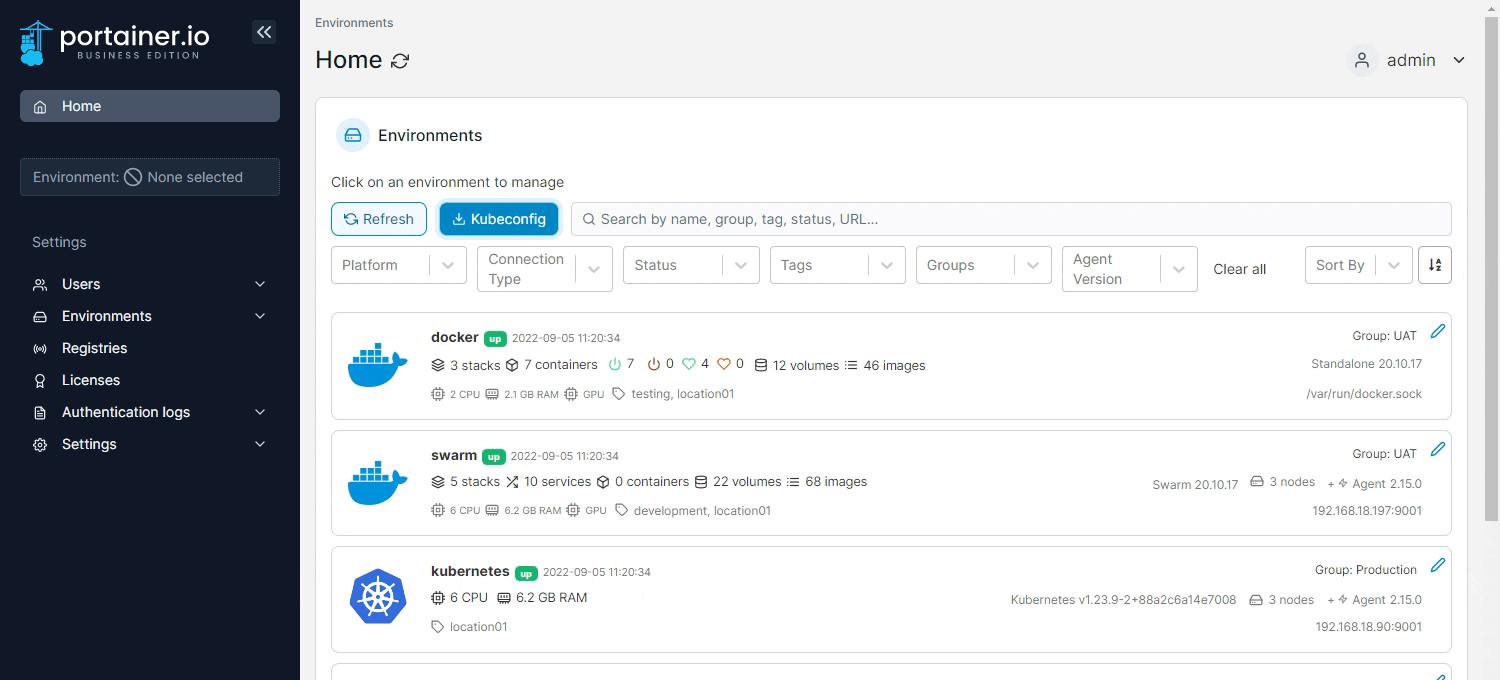

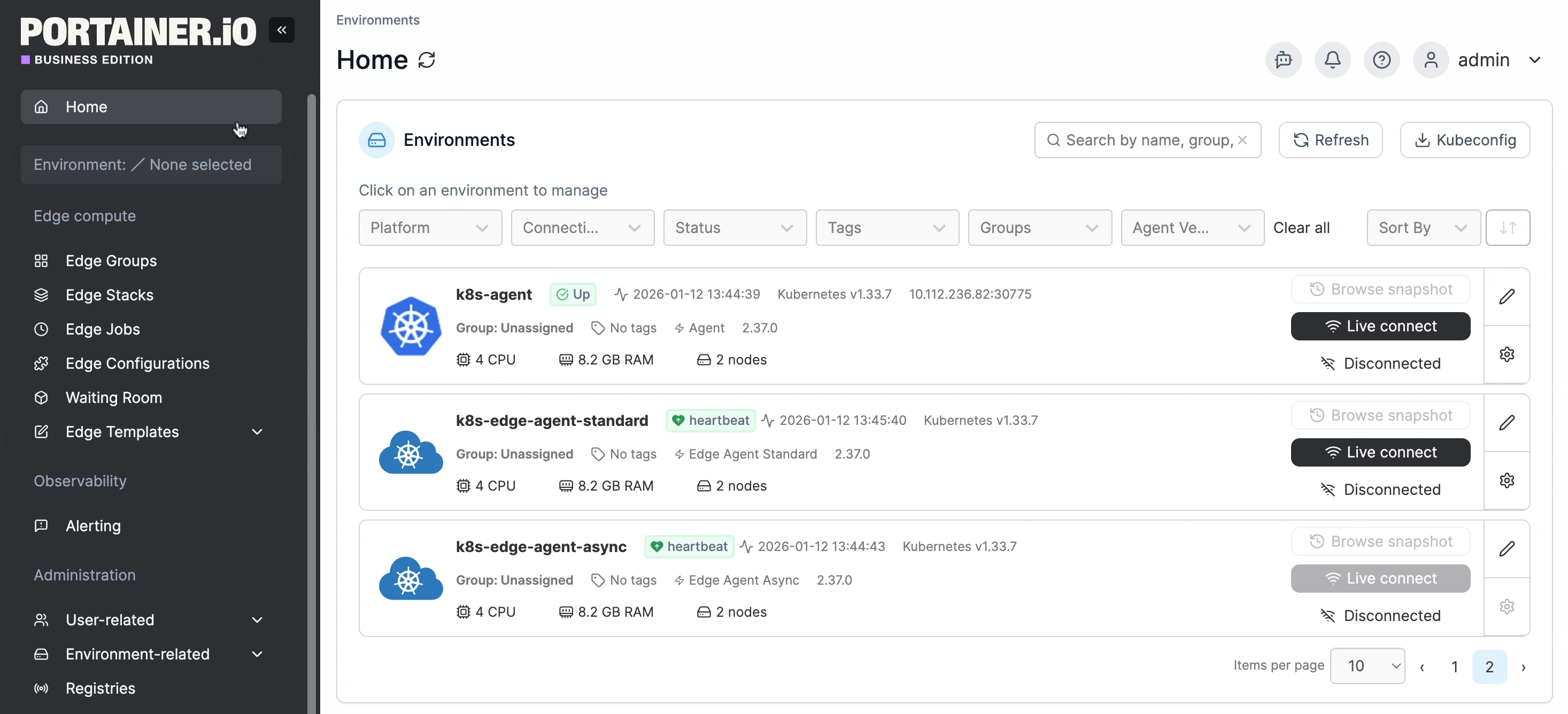

To generate and download your kubeconfig file, from the Home page click the kubeconfig button.
You must be accessing Portainer via HTTPS for the kubeconfig button to appear. If you are logged in with HTTP, you will not see the option.

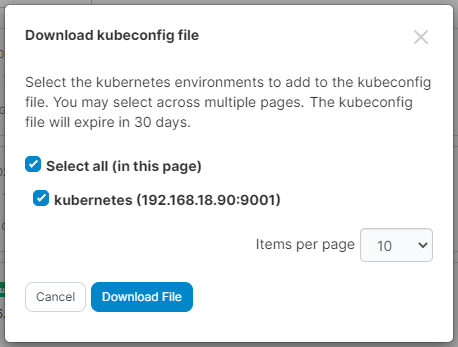

You will be asked to select the Kubernetes environments that you would like in your kubeconfig file. If you have configured a kubeconfig expiry value, this will also be shown.
Tick the boxes for the environments you need and click Download File.
A downloaded kubeconfig file will look something like the example below.
Note that the server URL is set to the Portainer Server instance, not the Kubernetes cluster.
apiVersion: v1
clusters:
- cluster:
    insecure-skip-tls-verify: true
    server: https://my-portainer-server:9443/api/endpoints/1/kubernetes
  name: portainer-cluster-kubernetes
contexts:
- context:
    cluster: portainer-cluster-kubernetes
    user: portainer-sa-clusteradmin
  name: portainer-ctx-kubernetes
current-context: portainer-ctx-kubernetes
kind: Config
preferences: {}
users:
- name: portainer-sa-clusteradmin
  user:
    token: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Each environment in the kubeconfig will be accessible via contexts. Access is set based on the specific user that created the kubeconfig file.
Unless set to never expire, tokens will expire after the defined period, at which point a new kubeconfig file will need to be generated. An administrator can adjust the token expiry behavior on the Settings page.
Adjusting the token expiry will not affect previously generated kubeconfig files.
​
