Install Edge Agent Async on Kubernetes
When a remote environment is not directly accessible from the Portainer Server instance, we recommend deploying the Portainer Edge Agent to the remote environment. This allows you to manage the remote environment from your Portainer Server instance without having to open any ports on the environment. Rather than the traditional approach of the server connecting to Agents, the Edge Agent instead polls the Portainer Server periodically to see if there are any pending jobs to perform, and acts appropriately.
The Portainer Edge Agent can be deployed in two different modes - standard mode and async mode. In standard mode, we provide the ability to connect to the remote Edge Agent through a tunnel that is established on-demand from the Edge Agent to the Portainer Server, letting you interact directly with the environment in real time.
In async mode, this tunnel connectivity is not available. Instead, we provide the ability to browse snapshots of the remote environment, allowing you to see the state of the Edge Agent's environment based on a recent state capture sent through to the Portainer Server, as well as use this snapshot to perform actions on the remote environment.
Async mode has been developed to use very small amounts of data and as such is suitable for environments that have limited or intermittent connectivity as well as connections with limited data caps, for example mobile networks.
In async mode, the Edge Agent requires only the UI port (usually
30779on Kubernetes with NodePort) to be open on the Portainer server instance. The tunnel port is not required for async mode. Our installation instructions configure Portainer Server to listen on both ports by default, and you will need to ensure your firewalling provides external access to the UI port in order to proceed.
If your Portainer Server instance is deployed with TLS, the agent will use HTTPS for the connection it makes back to Portainer. However if your Portainer instance uses a self-signed certificate, the Edge Agent must be deployed with the
-e EDGE_INSECURE_POLL=1flag. If you do not deploy the Edge Agent with this flag, then the agent will not be able to communicate with the Portainer Server instance.
To add an async Edge Agent to a Kubernetes environment, click on Environments then Add environment.

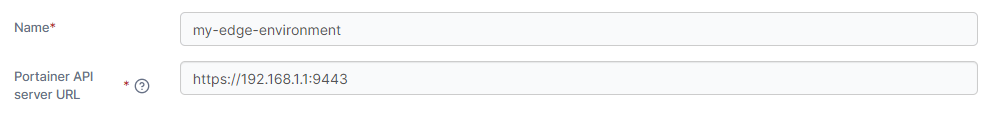

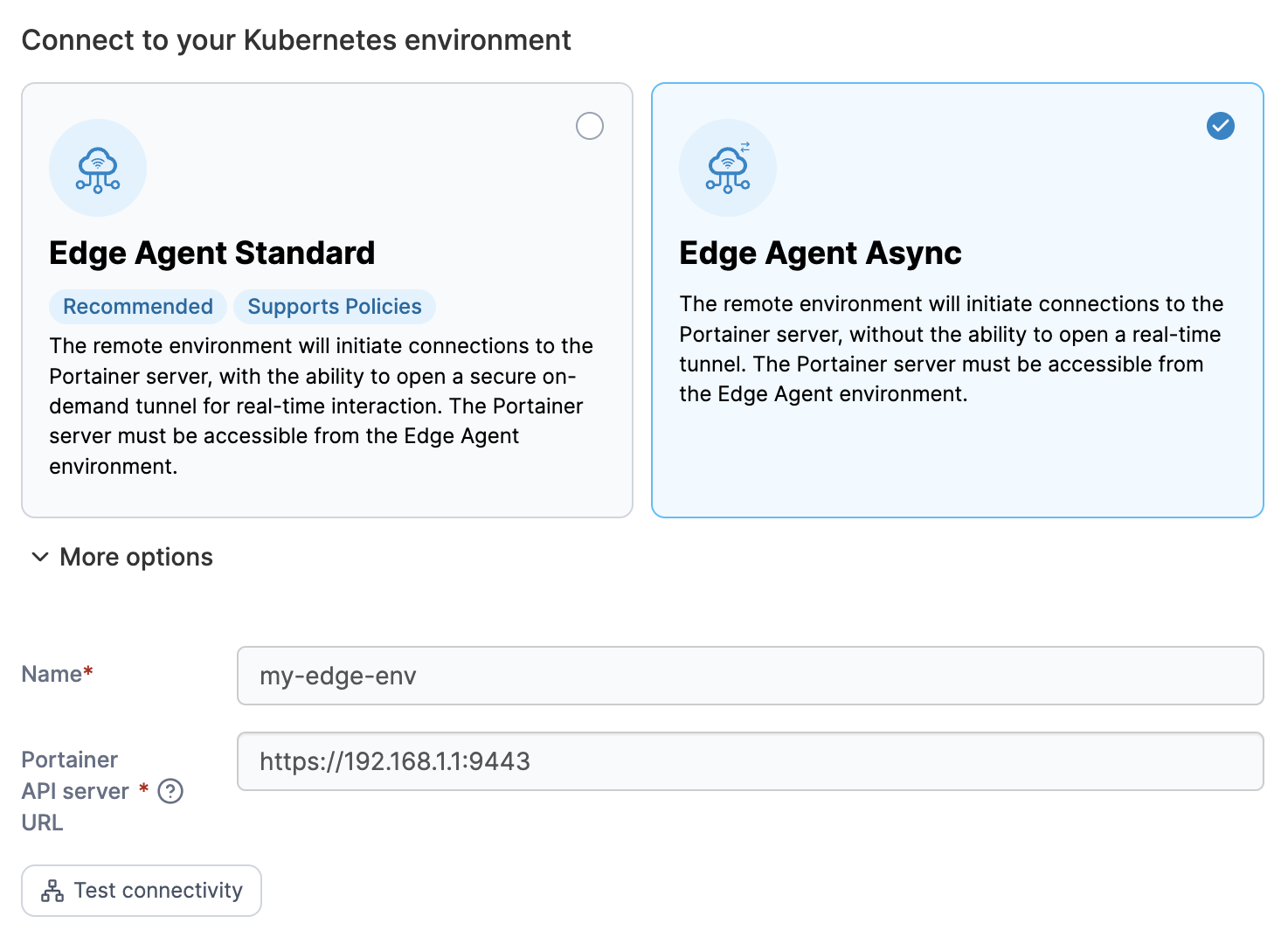

Select Kubernetes then click Start Wizard. Then select the Edge Agent Async option. Enter the environment details using the table below as a guide.

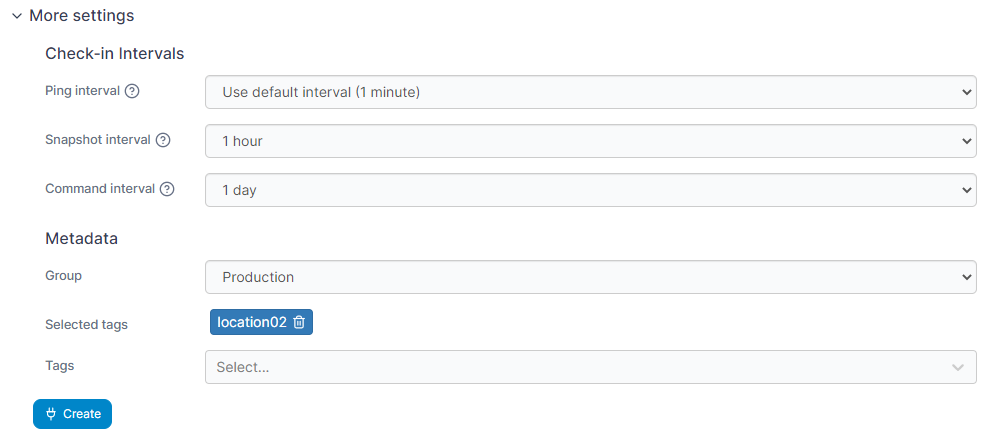

As an optional step you can expand the More settings section and adjust the Ping, Snapshot and Command intervals for the environment - this defines how often this Edge Agent will check in with the Portainer Server for status updates, snapshot updates and to see if there are new pending commands to run, respectively. The default for each is once a minute, but the defaults can be adjusted in the Edge Compute settings.

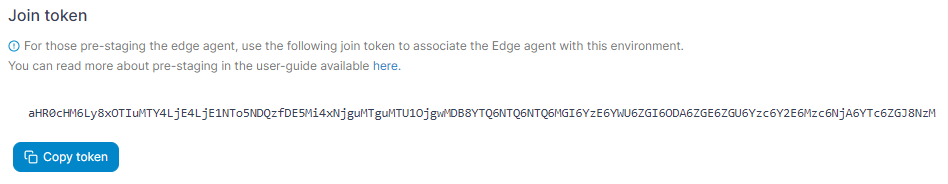

When you're ready, click Create. If you are pre-staging your Edge Agent deployment, you can now retrieve the join token for use in your deployment.

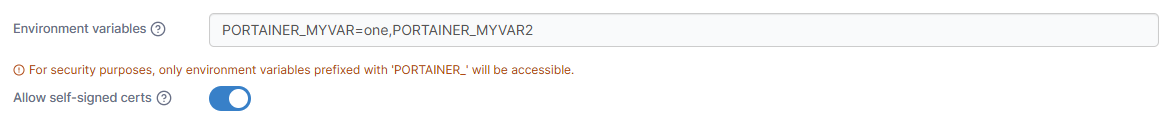

Otherwise, complete the new fields that have appeared using the table below as a guide.

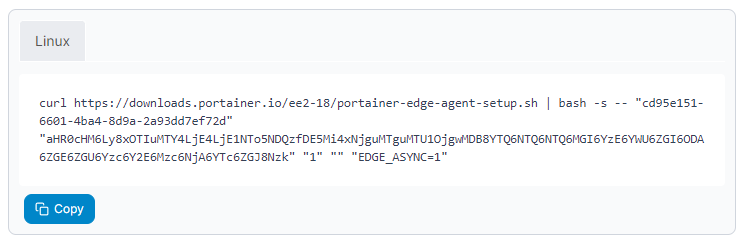

Copy the generated command and run the command on your Edge environment to complete the installation.
If you have set a custom
AGENT_SECRETon your Portainer Server instance you must remember to explicitly provide this when deploying your Edge Agent.
If you have another Edge async environment of the same type to deploy you can click Add another environment to do so. Otherwise if you have any other environments to configure click Next to proceed, or click Close to return to the list of environments.
