Sources

The GitOps Sources screen provides a central place to create, view and manage external sources connected to your Portainer instance, including Git repositories, registries, and GitOps-created authentication tokens.

Supporting resources such as Service Accounts, ConfigMaps, and Secrets deployed via Create from code are not included in the Sources view.

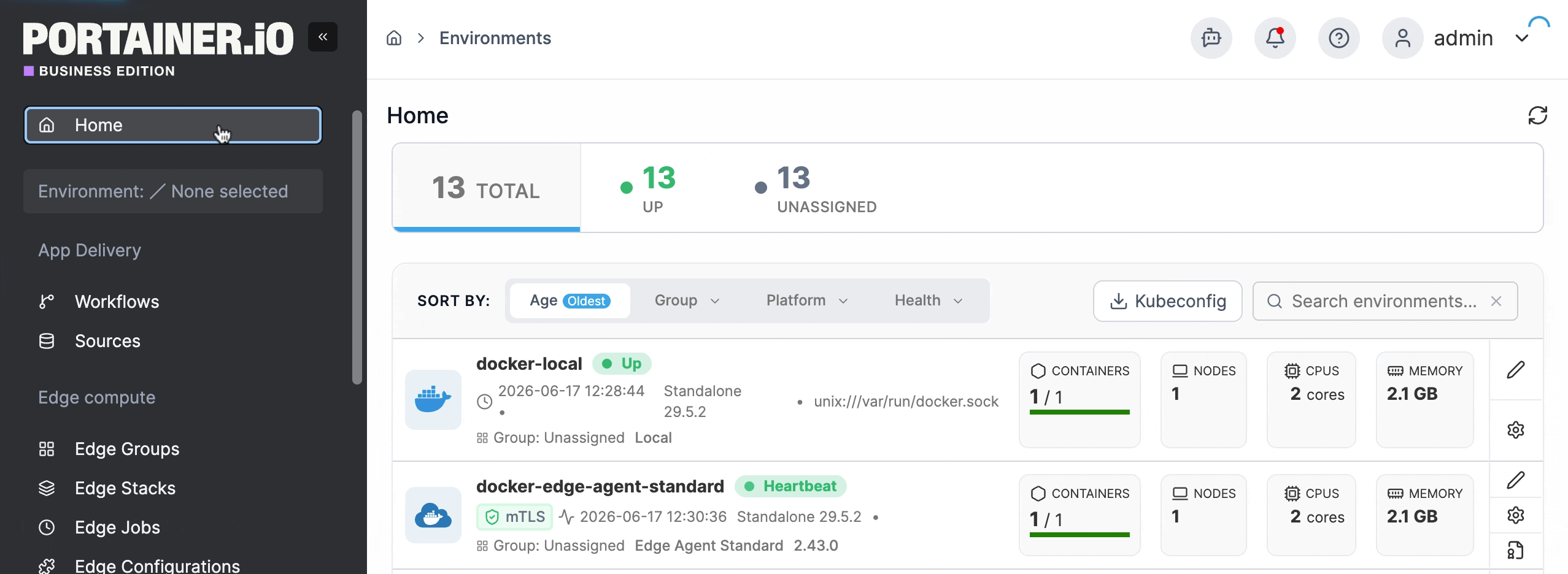

To view your GitOps sources, select Sources from the left-hand menu.

From this view, admin users can add a new source, monitor the connectivity status of each source, and manage credentials - maintaining consistency across the platform without navigating between multiple configuration screens.

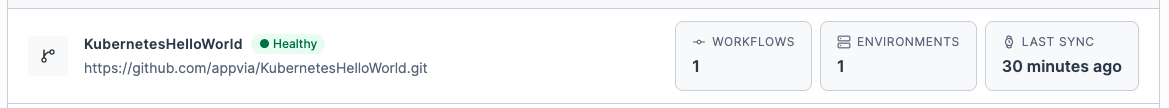

Each source displays its current connectivity status, calculated at the time of the last connection attempt, whether triggered manually or via an automated GitOps polling workflow. If a credential expires or a network change blocks access, the status updates to reflect this. It also displays the source URL, the number of workflows and environments the source is connected to, and the time of the last sync.

View a source

Click a source to view its details.

From this view, you can select Test Connection to verify that the source is reachable. If you have edit rights for the source, can also Remove the source if it is no longer used by any GitOps Workflows.

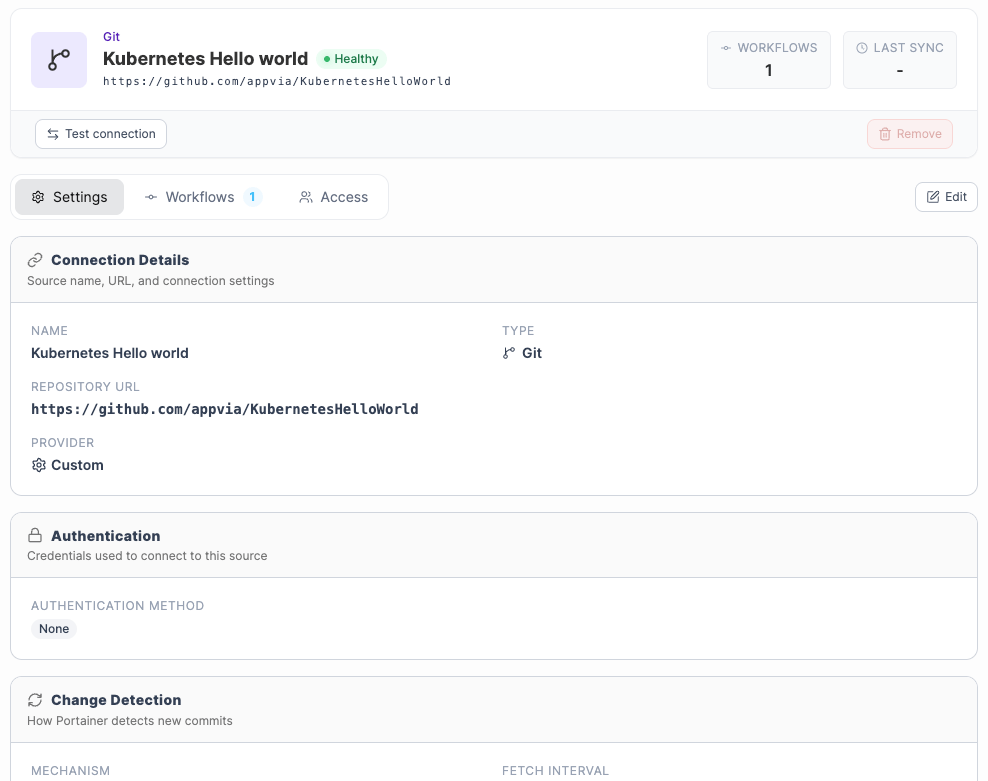

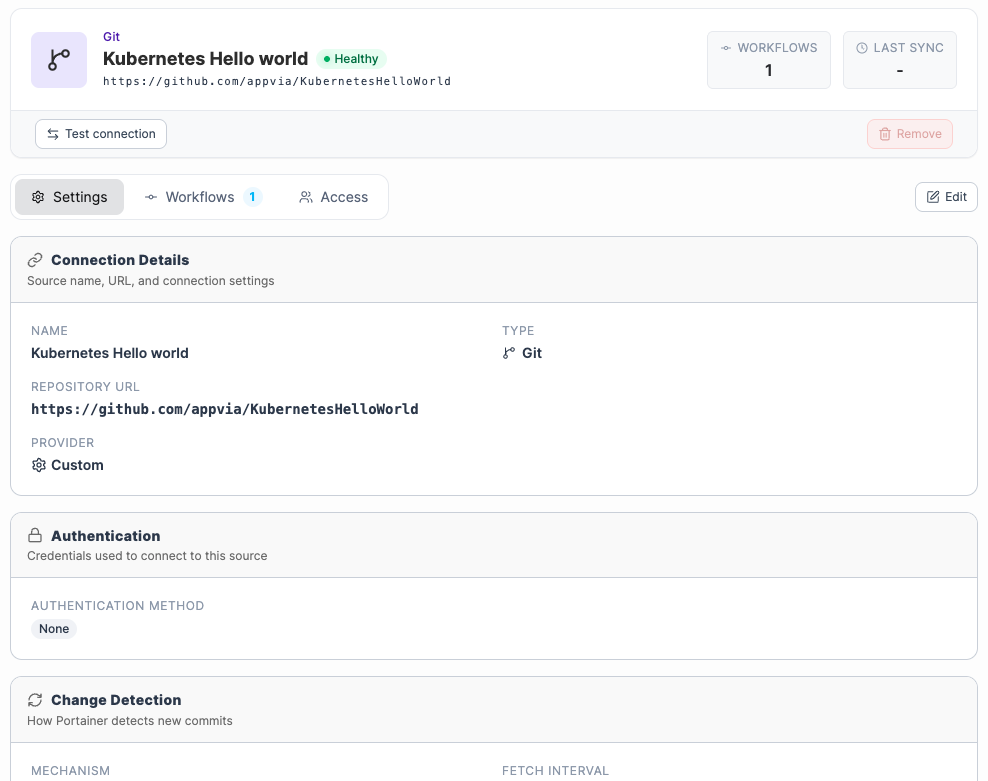

The Settings tab shows:

• The Connection Details, including the repository URL, branch, and source type.

• The Authentication method configured for the source.

• Any Change Detection settings.

• The Sync Status, including the time of the last sync.

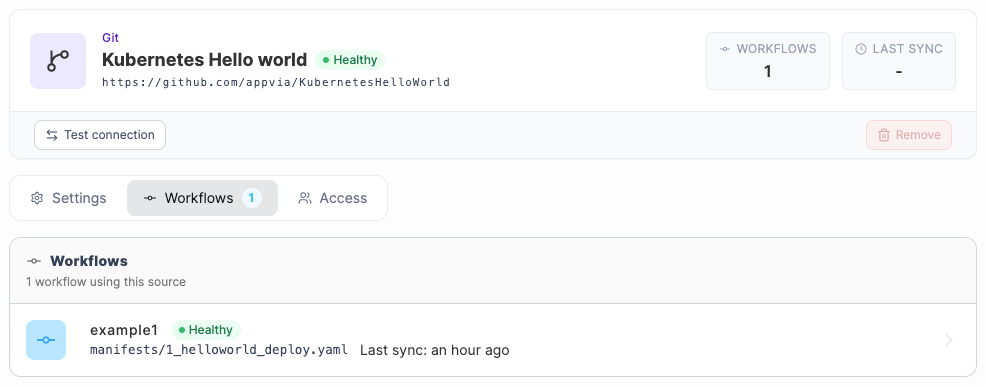

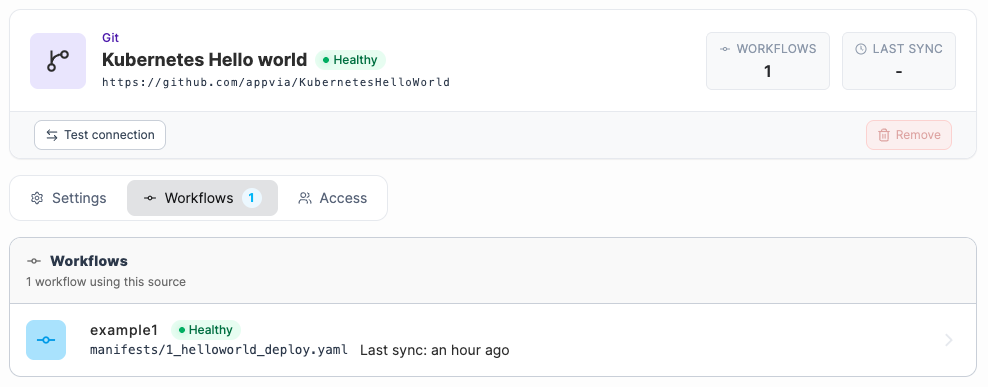

The Workflows tab lists any workflows using this source.

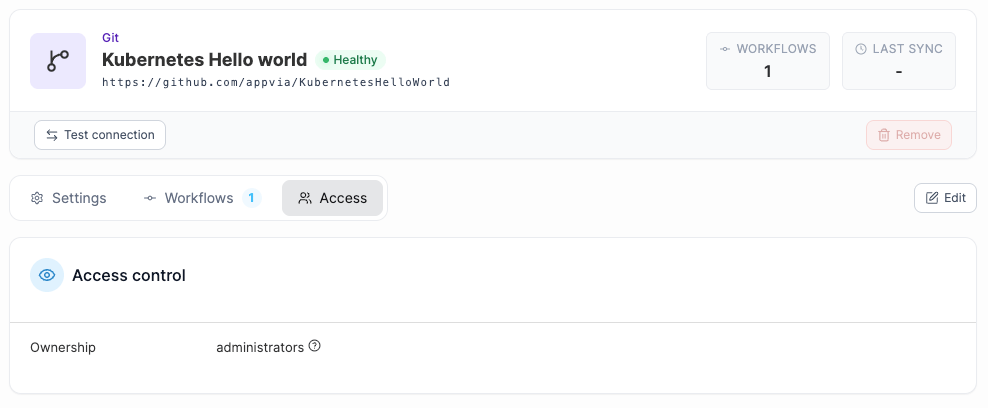

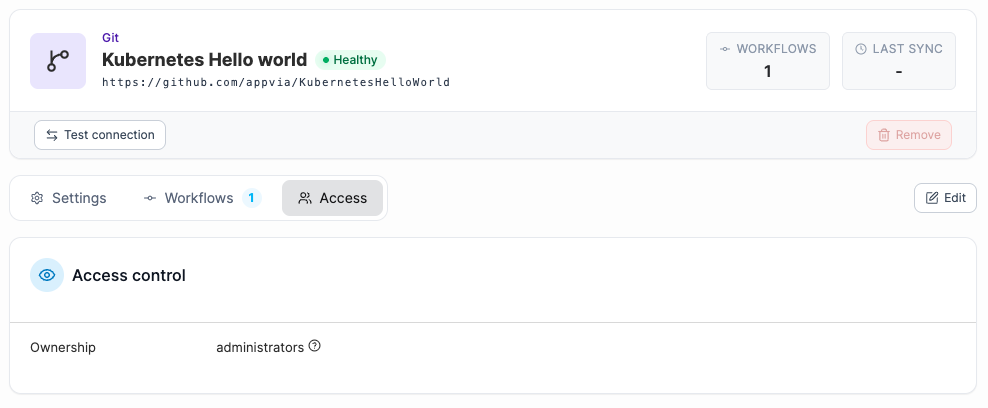

The Access tab displays the access level that is in place for this source. The access level defines who can use and edit the source.

Edit a source

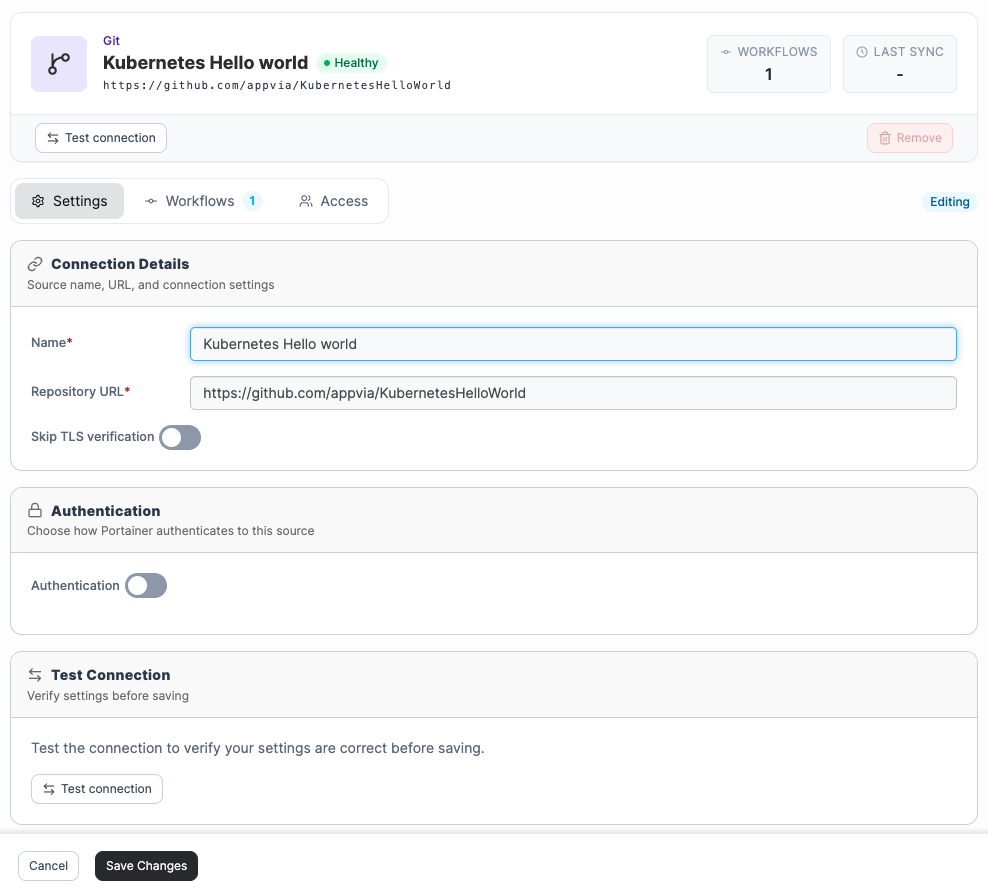

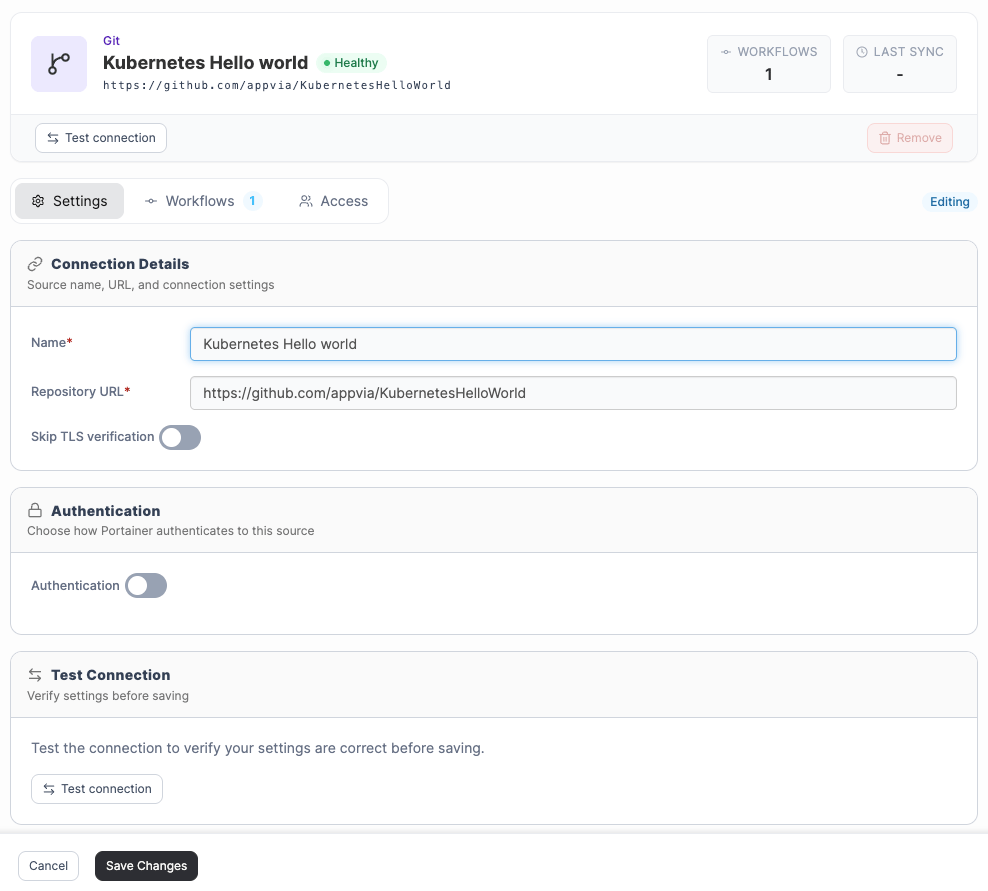

To edit a source, select Edit in the top-right corner of the Settings or Access view. Note that only users with edit access to the source can open it in edit mode. In edit mode, you can update connection details and authentication settings from the Settings tab, optionally select Test Connection to verify your changes before saving. To update access settings, make your selection from the Access tab - only admin users can modify access settings. Select Save Changes when done.
