Install Edge Agent Async on KubeSolo

For a technical summary of how the Edge Agent works, refer to our advanced documentation.

From the menu expand Environment-related, click Environments, then click Add environment.

Select KubeSolo (Edge) then click Start Wizard. Then select the Edge Agent Async option. Enter the environment details using the table below as a guide.

Field	Overview
Name	Enter a name for your environment.
Portainer API server URL	The URL of the Portainer instance that the agent will use to initiate the communications.

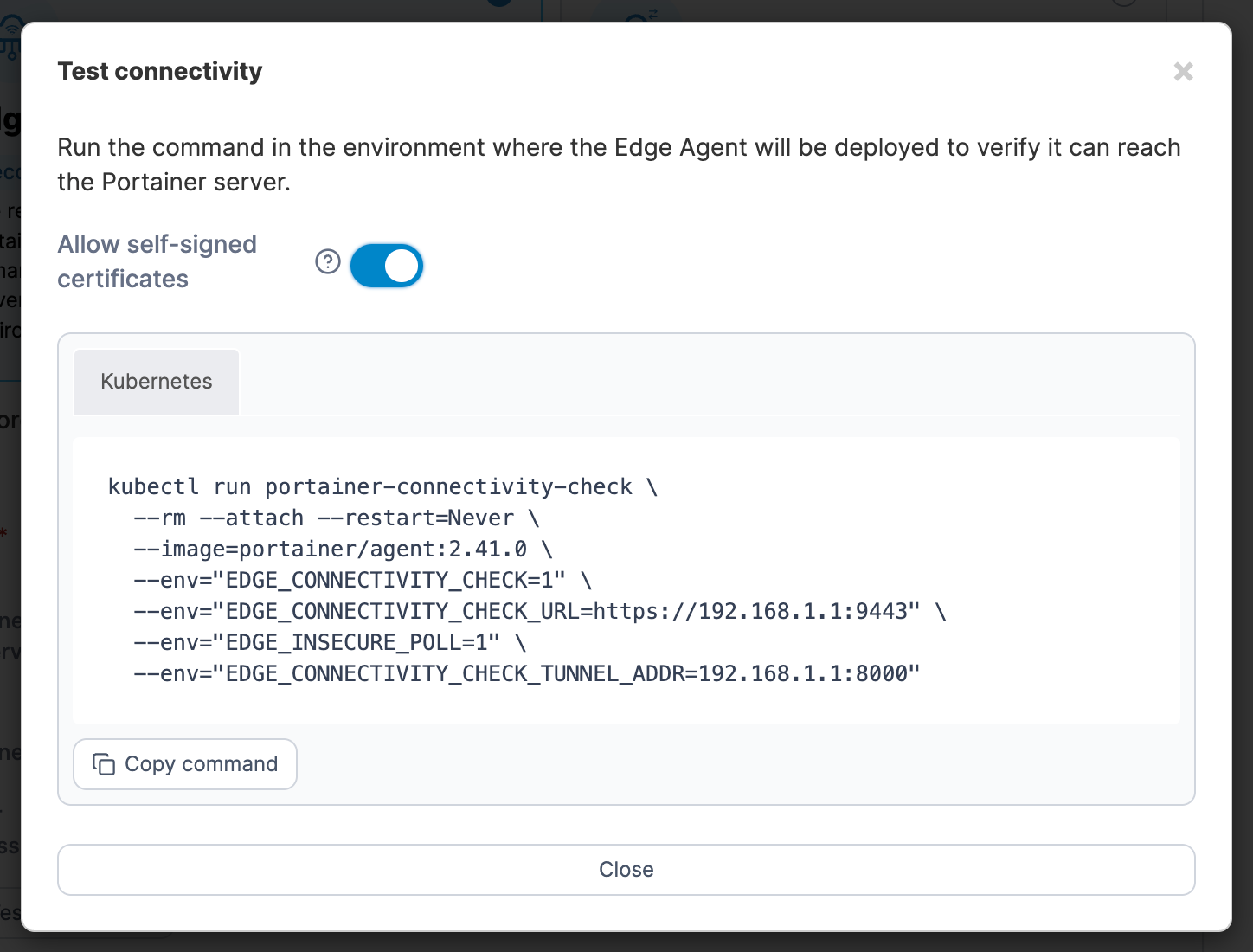

To test your input details, select Test connectivity to generate a verification command. Run this in the environment where the Edge Agent will be deployed to confirm it can reach the Portainer server. If your Portainer instance uses a self-signed or untrusted certificate, ensure you have Allow self-signed certificates selected, this will add EDGE_INSECURE_POLL=1 to the script.

As an optional step you can expand the More settings section and adjust the Ping, Snapshot and Command intervals for the environment - this defines how often this Edge Agent will check in with the Portainer Server for status updates, snapshot updates and to see if there are new pending commands to run, respectively. The default for each is once a minute, but the defaults can be adjusted in the Edge Compute settings.

You can also categorize the environment by adding it to a group or tagging it for better searchability.

When you're ready, click Create. If you are pre-staging your Edge Agent deployment, you can now retrieve the join token for use in your deployment.

Otherwise, complete the new fields that have appeared using the table below as a guide.

Field/Option	Overview
Environment variables	Enter a comma separated list of environment variables that will be sourced from the host where the agent is deployed and provided to the agent. For security, the agent will only pass through environment variables with a PORTAINER_ prefix.
Allow self-signed certs	Toggle this on to allow self-signed certificates when the agent is connecting to Portainer via HTTPS.

Copy the generated command and run it on your Edge environment to complete the installation. If you already have KubeSolo installed and just need to deploy the agent, use the command under the Manual tab. Otherwise, use the command under the KubeSolo tab to install KubeSolo and the agent together.

If you have set a custom AGENT_SECRET on your Portainer Server instance (by specifying an AGENT_SECRET environment variable when starting the Portainer Server container) you must remember to explicitly provide the same secret to your Edge Agent in the same way (as an environment variable) when deploying your Edge Agent, within the agent deployment definition:

env: - name: AGENT_SECRET value: yoursecret

If you have another Edge standard environment of the same type to deploy you can click Add another environment to do so. Otherwise if you have any other environments to configure click Continue to proceed, or click Close to return to the list of environments.
