# Cluster visualizer

{% hint style="info" %}
This feature is only available to Docker Swarm environments.
{% endhint %}

The **Cluster visualizer** section gives you an overview of your cluster and the tasks on it.

## Cluster information

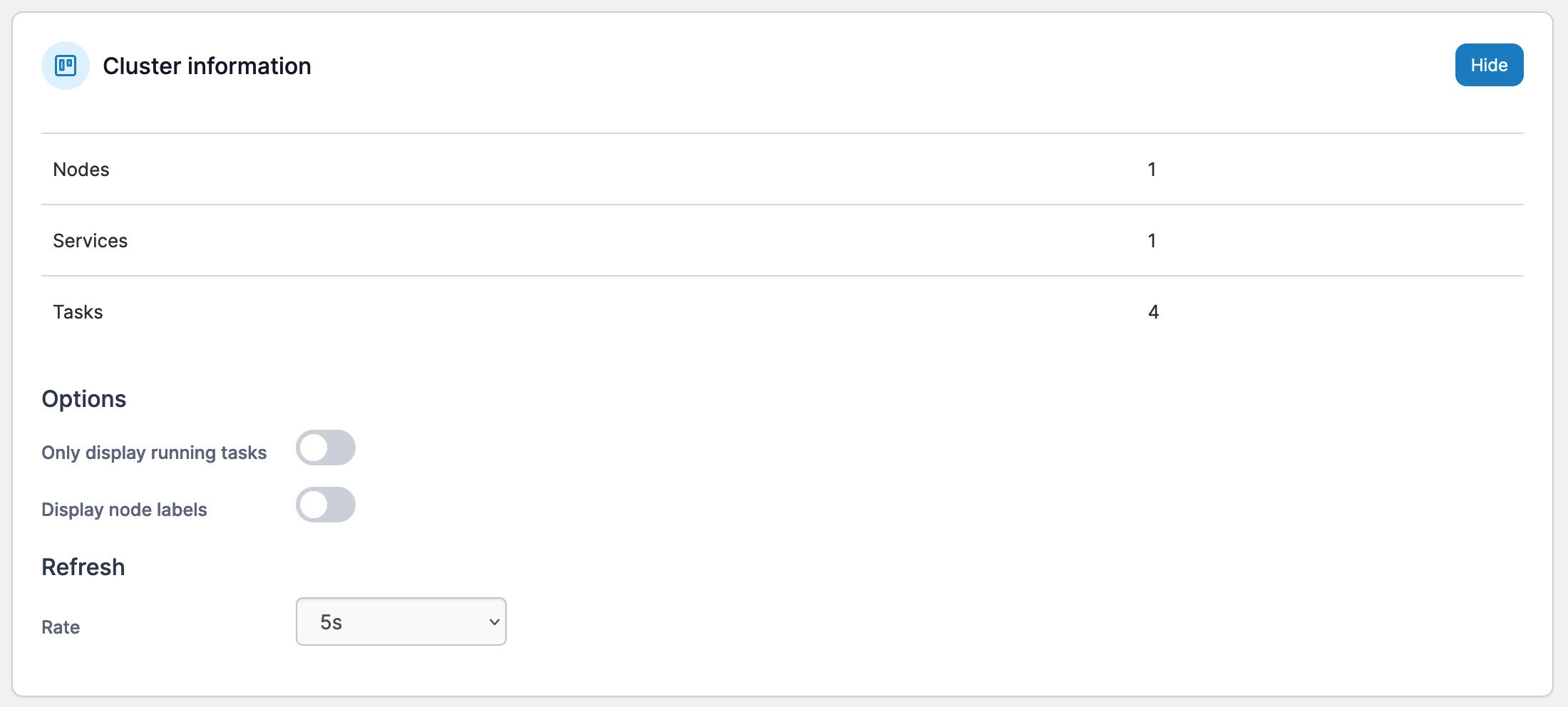

View the details about the cluster including the number of nodes, services and tasks. You can also adjust the visualizer display.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-5aa73124908a274b0236fcfe13002af82b0c8681%2F2.15-docker_swarm_cluster_visualizer.png?alt=media" alt=""><figcaption></figcaption></figure>

### Options

**Only display running tasks** filters the task list in the visualizer to only include running tasks.&#x20;

**Display node labels** toggles the display of labels on the nodes in the visualizer.

### Refresh

Use this option to define the refresh rate of the visualizer (the default is every 5 seconds).

## Cluster visualizer

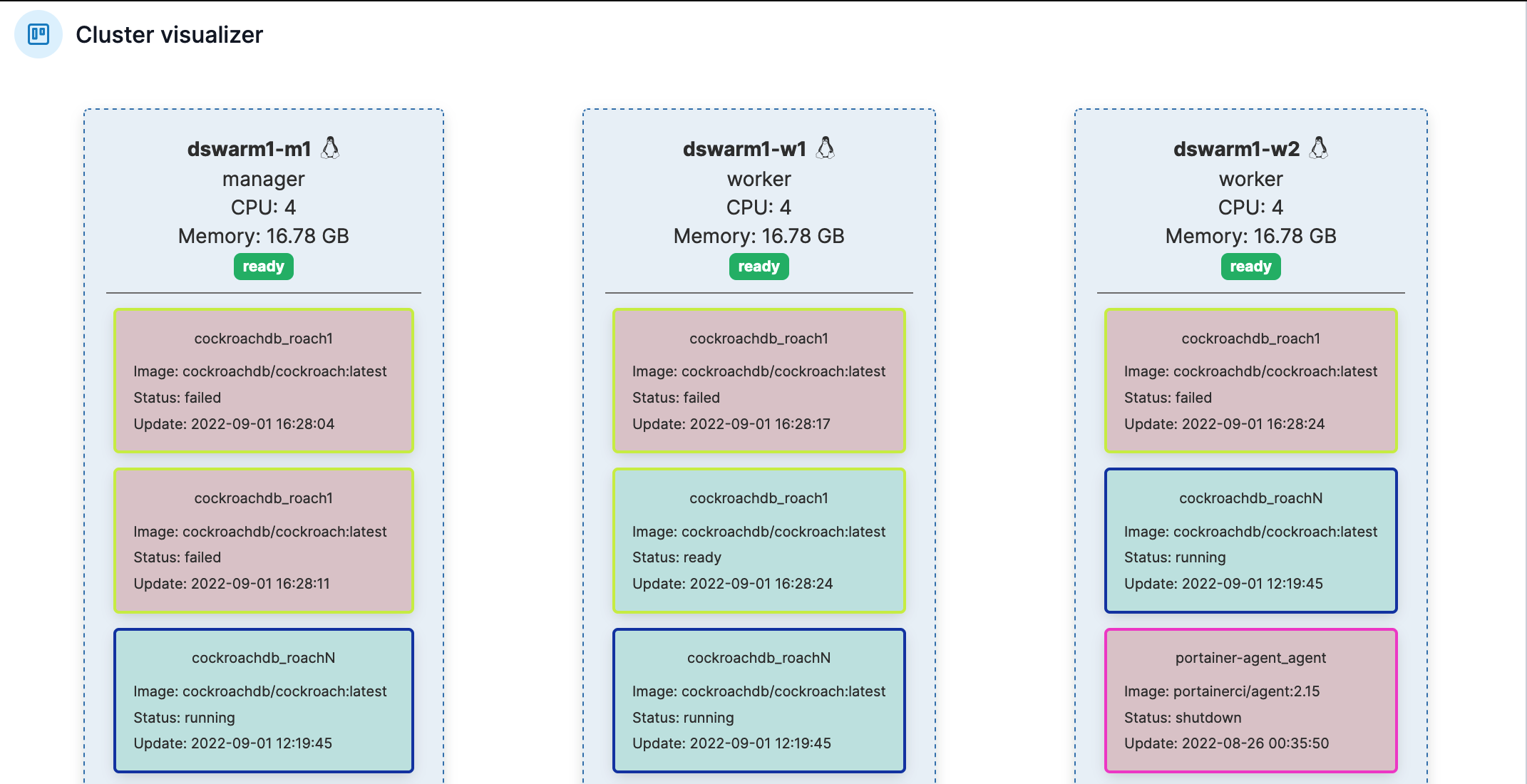

The **Cluster visualizer** section gives you a visual representation of the nodes in your cluster and the tasks on each node.&#x20;

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-7555e194fae8d3d78ea434187d9824c415890dea%2F2.15-docker_swarm_cluster_info.png?alt=media" alt=""><figcaption></figcaption></figure>
