# Configure service options

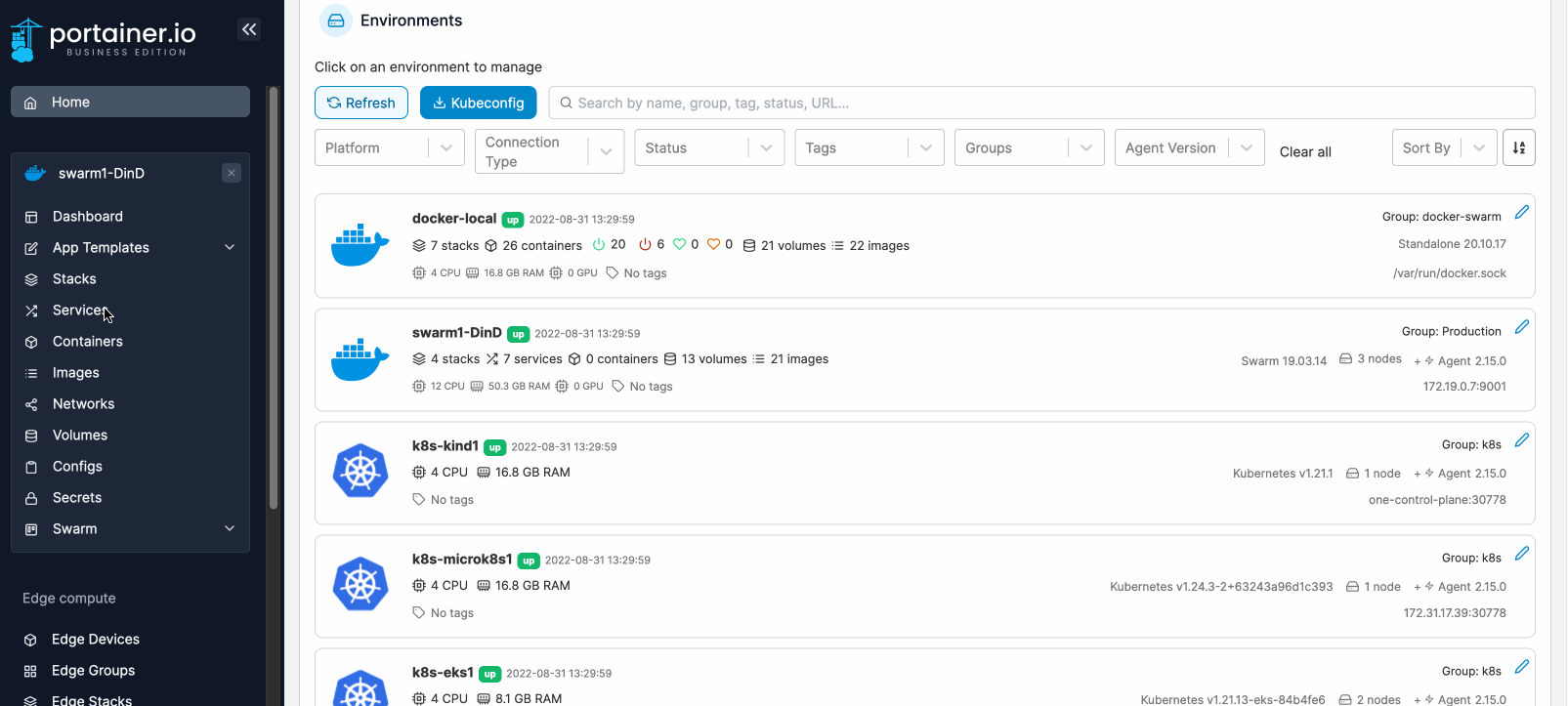

From the menu select **Services** then select the service you want to configure.&#x20;

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-5e1f533c00bde451cba8105afb255202261651d7%2F2.15-docker_services_configure.gif?alt=media" alt=""><figcaption></figcaption></figure>

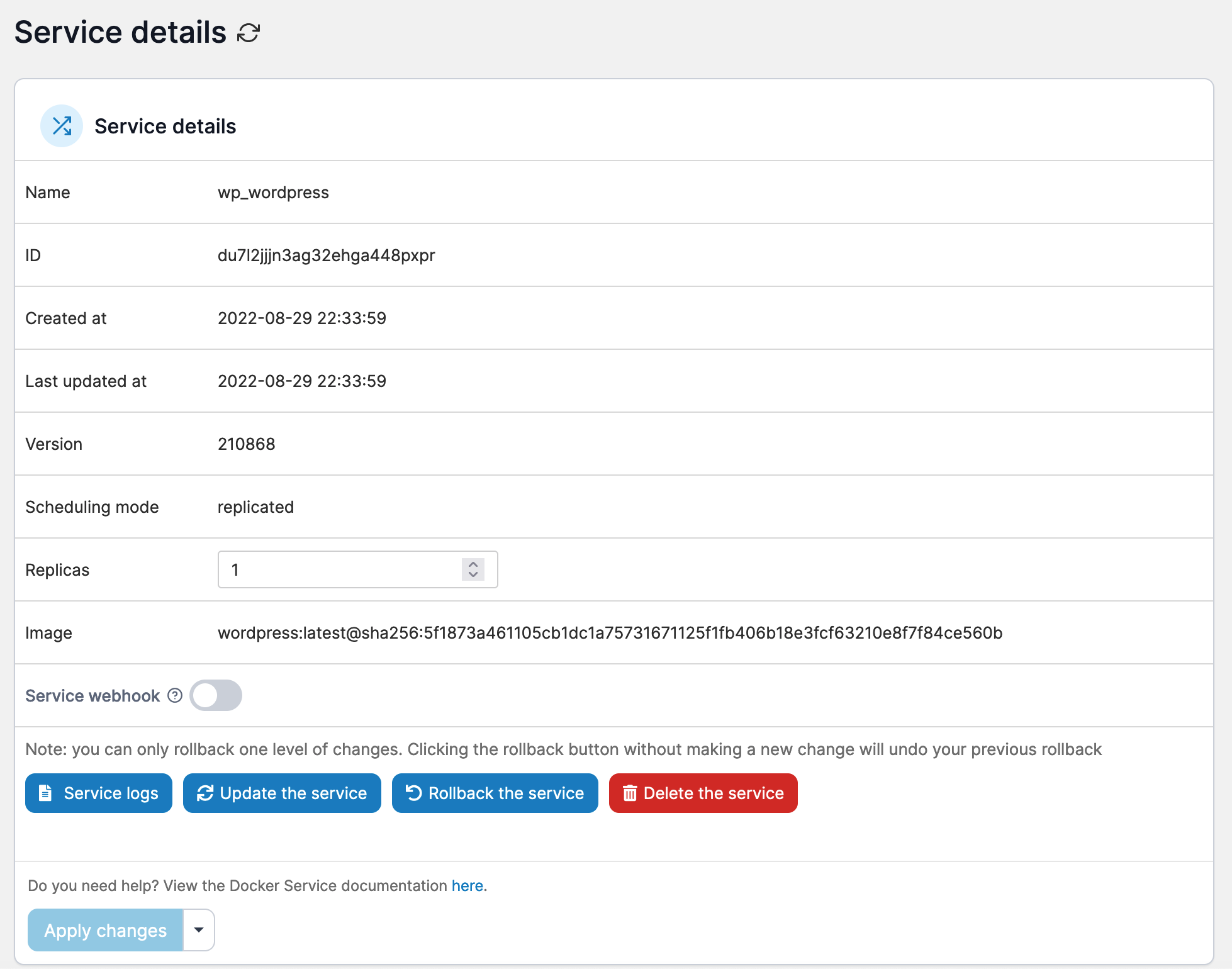

## Service details

In this section you can:

* View a summary of the details about the service.
* Configure the number of replicas.
* Toggle the [service webhook](https://docs.portainer.io/2.33-lts/user/docker/services/webhooks) on or off.
* View the [service logs](https://docs.portainer.io/2.33-lts/user/docker/services/logs).
* Update, [roll back](https://docs.portainer.io/2.33-lts/user/docker/services/rollback) or delete the service.

<figure><img src="https://content.gitbook.com/content/XI7douejaBgpZ6CP2zJf/blobs/bEKC6cK0IVAn3uYtWNLS/2.15-docker_services_service_details.png" alt=""><figcaption></figcaption></figure>

## Container specification configuration options

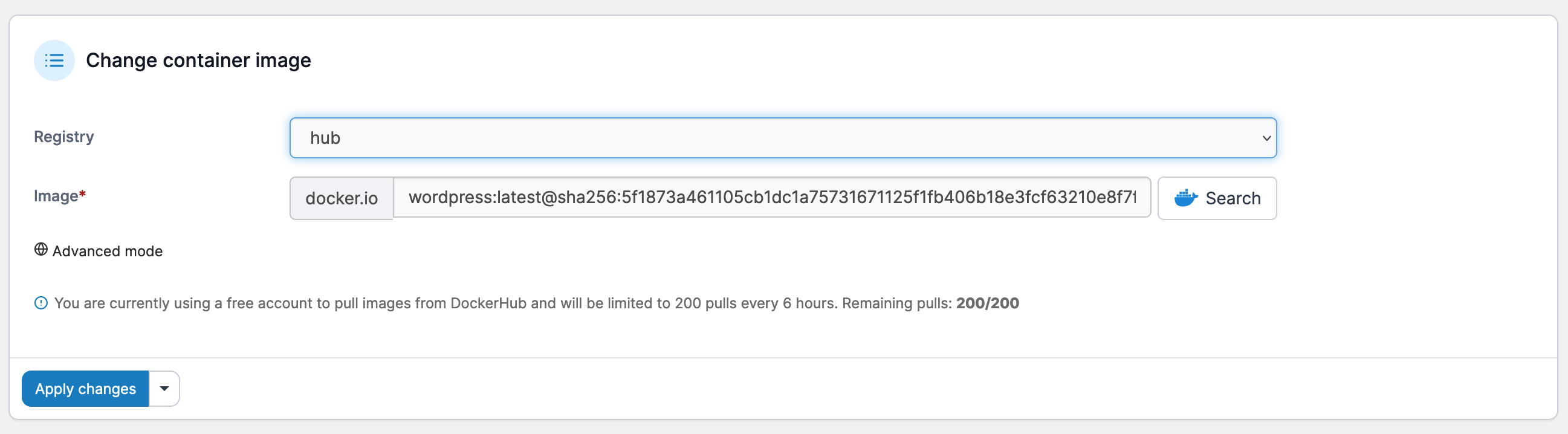

### Change container image

Here you can replace the container image with a different image. Select the registry, enter the image name, then click **Apply changes**.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-8e1c10a48ade290a0381e7152b265a866e333ceb%2F2.15-docker_services_change_container_image.png?alt=media" alt=""><figcaption></figcaption></figure>

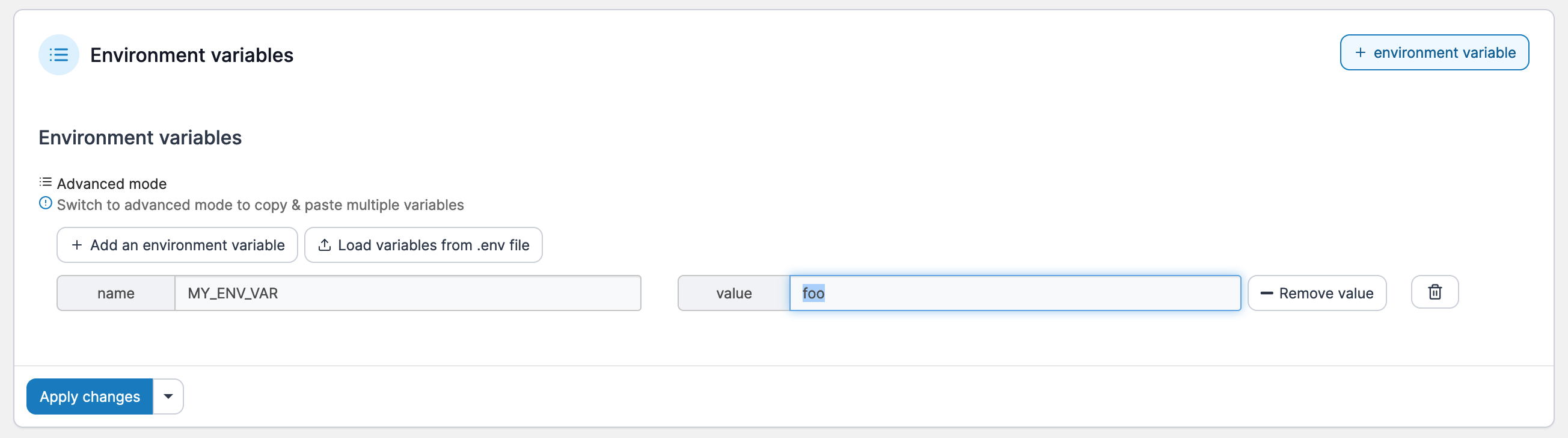

### Environment variables

It's best to set environment variables when you [create a container](https://docs.portainer.io/2.33-lts/user/docker/containers/add) and before deployment. You can still set or edit these variables after deployment if you wish.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-a0998b68321a6d8c040e086a9c05fdf2bf5d2f17%2F2.15-docker_services_service_env_var.png?alt=media" alt=""><figcaption></figcaption></figure>

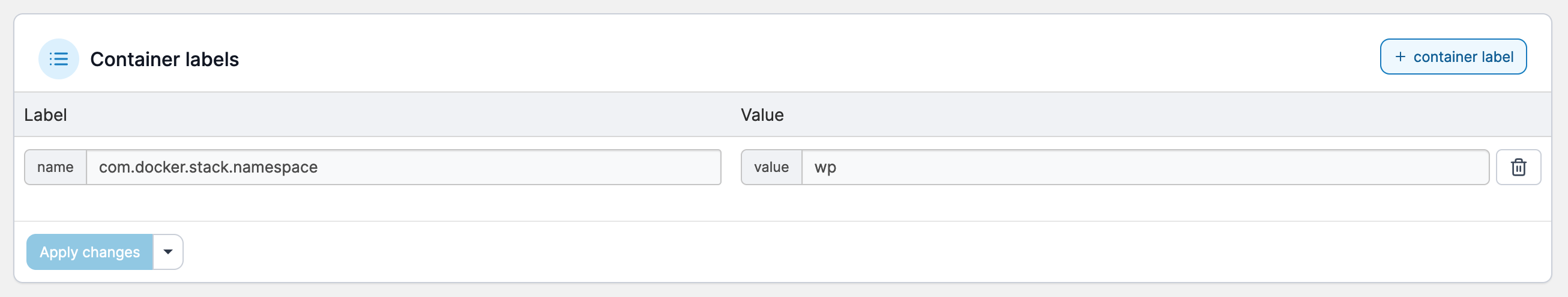

### Container labels

Labels give you a way to record information about a container, such as the way it's configured. Labels can also be used by Portainer to [hide containers from the interface](https://docs.portainer.io/2.33-lts/admin/settings#hidden-containers).

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-d2bb4d68040e269b3c17377f28c65c679b672ce3%2F2.15-docker_services_service_container_labels.png?alt=media" alt=""><figcaption></figcaption></figure>

### Mounts

You have the option to either mount or bind volumes in Portainer, and you can also make them read only. To add a mount, first select either **Volume** or **Bind** from the **Type** dropdown.

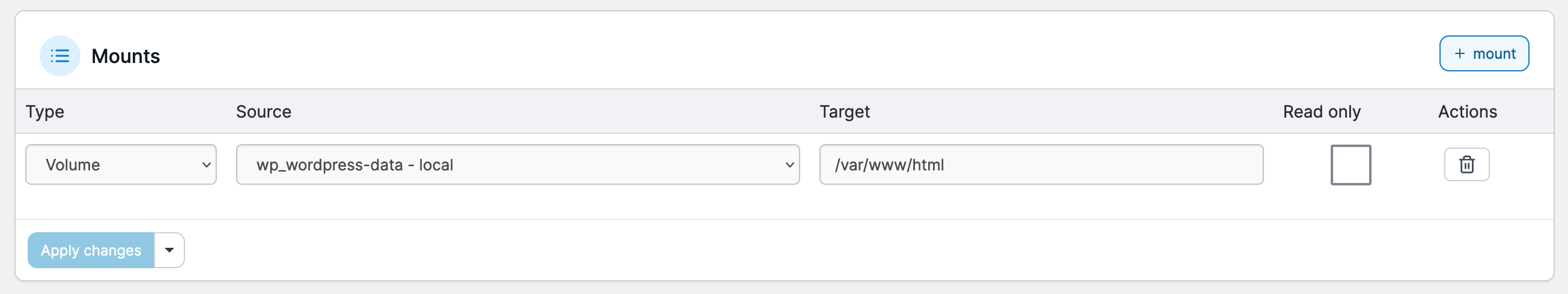

#### For volume mounts:

Select the volume from the **Source** dropdown, enter the container path in the **Target** field tick **Read only** if required then click **Apply changes**.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-f8ea1f336777b6abbe2577bb292875d0d1977fa7%2F2.15-docker_services_service_mounts_volume.png?alt=media" alt=""><figcaption></figcaption></figure>

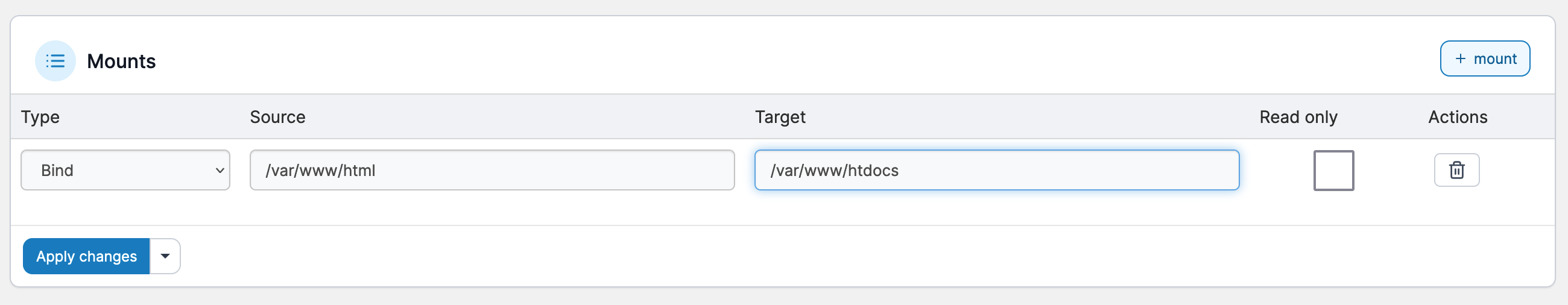

#### For bind mounts:

Enter the source path in the **Source** field, enter the container path in the **Target** field, tick **Read only** if required then click **Apply changes**.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-d1cd5655a0ac0d34b0866b4684b78794b3b8a6f1%2F2.15-docker_services_service_mounts_bind.png?alt=media" alt=""><figcaption></figcaption></figure>

## Networks & ports configuration options

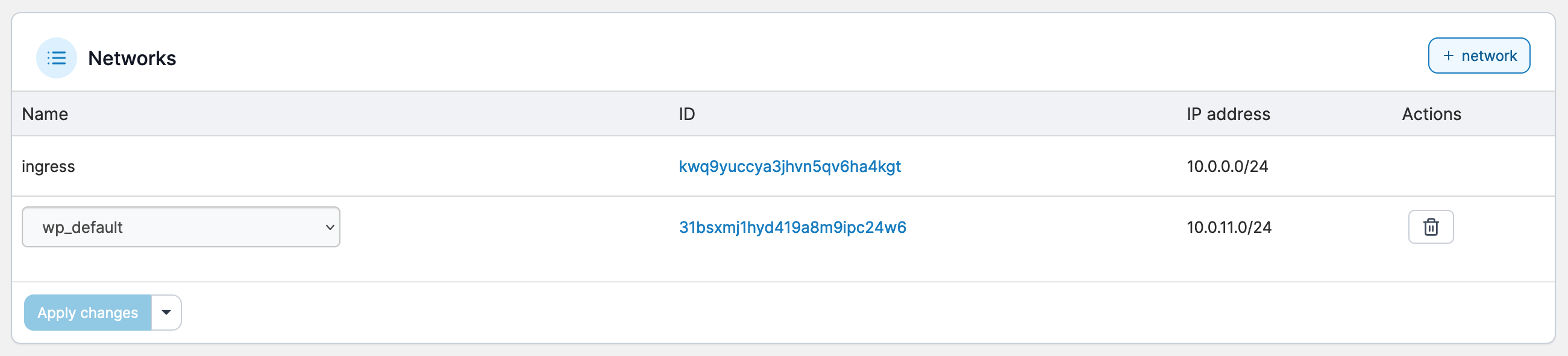

### Networks

You can define one or more networks for a service either before or after deployment. Simply select the network from the dropdown then click **Apply changes**.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-f099a01c4d2f8001b8d752f15e416bed5ffcaa0a%2F2.15-docker_services_service_networks.png?alt=media" alt=""><figcaption></figcaption></figure>

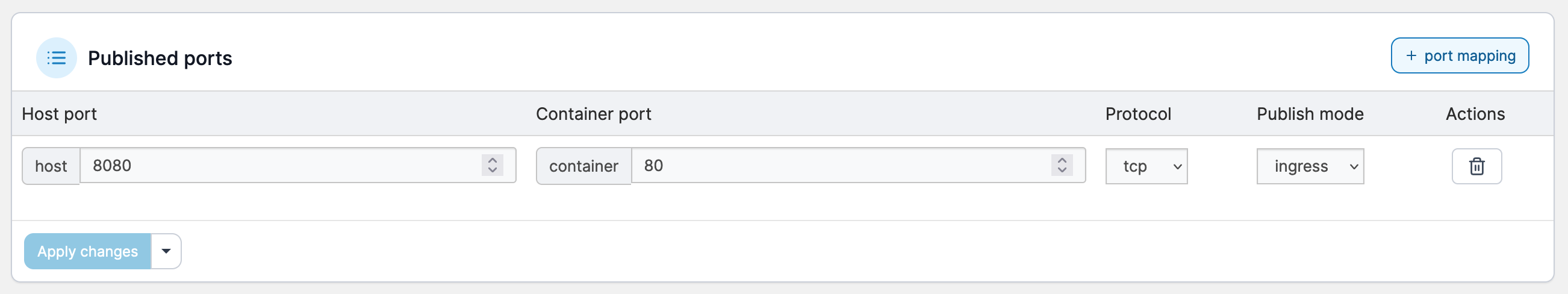

### Published ports

Use this setting to publish ports so they can access a container from outside of the host. You can either add new ports or update existing ports.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-50c14a48774a48d1bdde8c04925f546d74373c3d%2F2.15-docker_services_service_published_ports.png?alt=media" alt=""><figcaption></figcaption></figure>

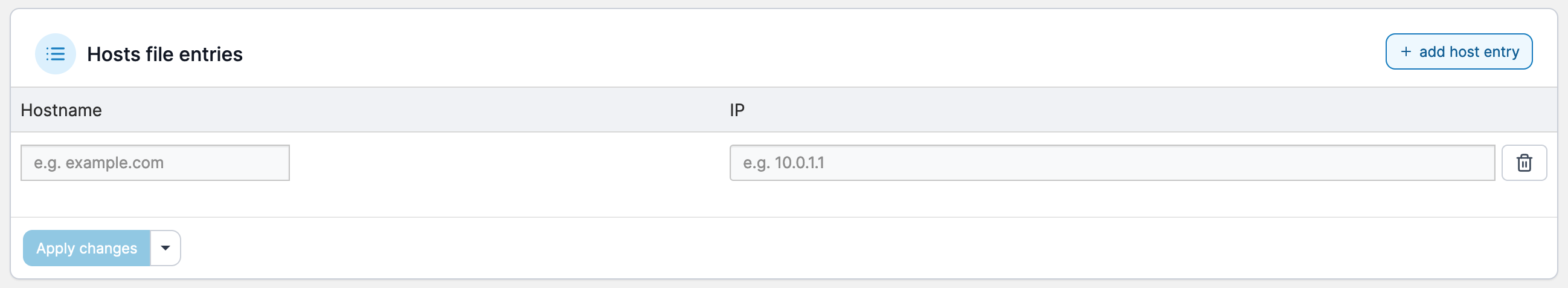

### Hosts file entries

Lets you manually specify a hostname or URL and associate the URL to an internal or external IP address.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-ff9c89f8b7808f5f11817655ab427a6d2a47cd14%2F2.15-docker_services_service_host_entries.png?alt=media" alt=""><figcaption></figcaption></figure>

## Service specification settings

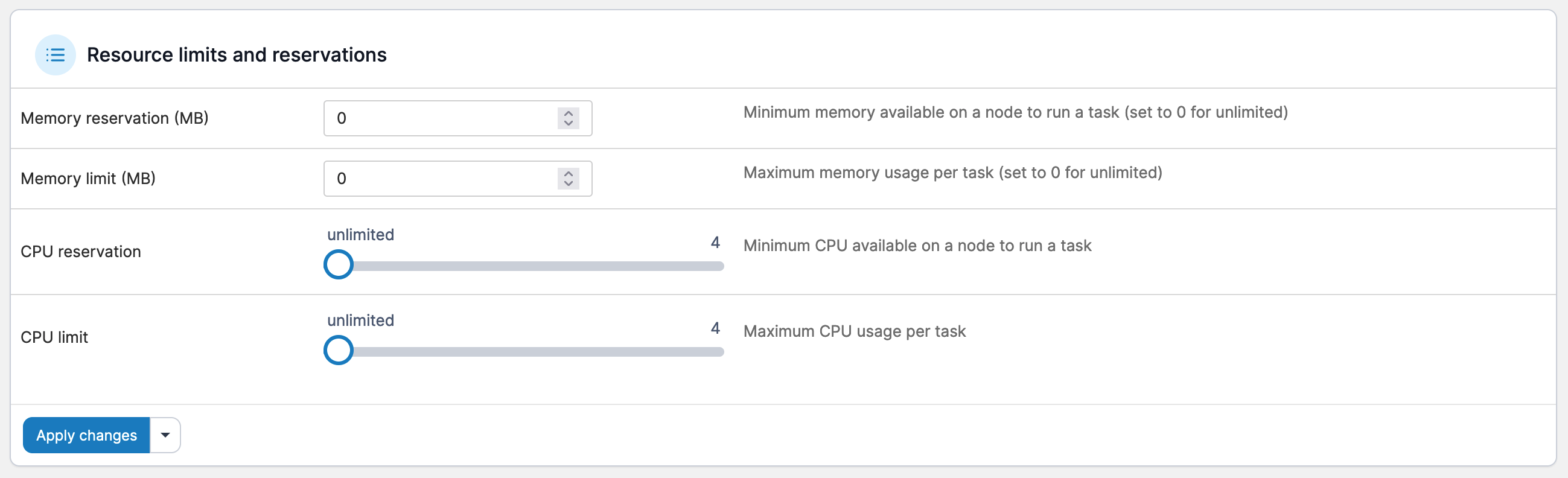

### Resource limits and reservations

Sets limits on resource utilization, such as memory, CPU reservation and CPU limit.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-6932cceb2f7db01fa673eeea6fe26f5c6ecdbedb%2F2.15-docker_services_service_resource_limits.png?alt=media" alt=""><figcaption></figcaption></figure>

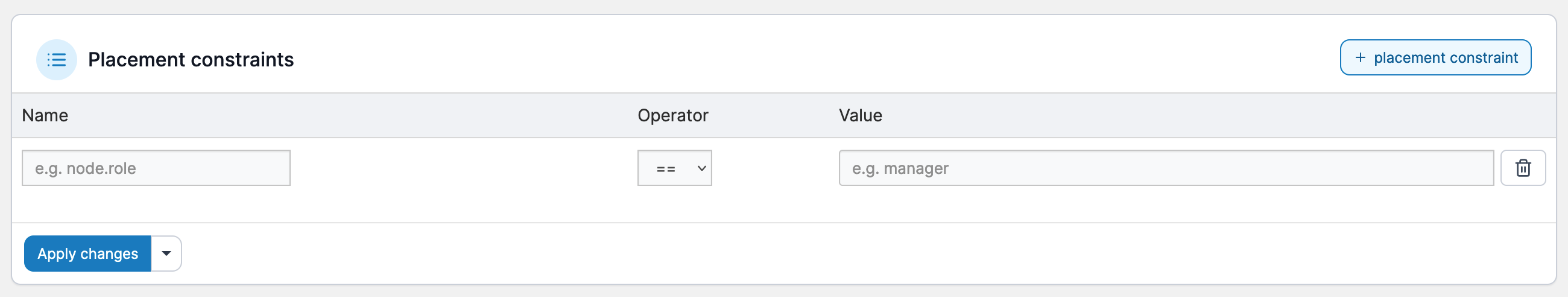

### Placement constraints

Use placement constraints to control which nodes a service can be assigned to.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-d9d57081b41acbbeaa89942516ed5cfc36f301c0%2F2.15-docker_services_service_placement_constraint.png?alt=media" alt=""><figcaption></figcaption></figure>

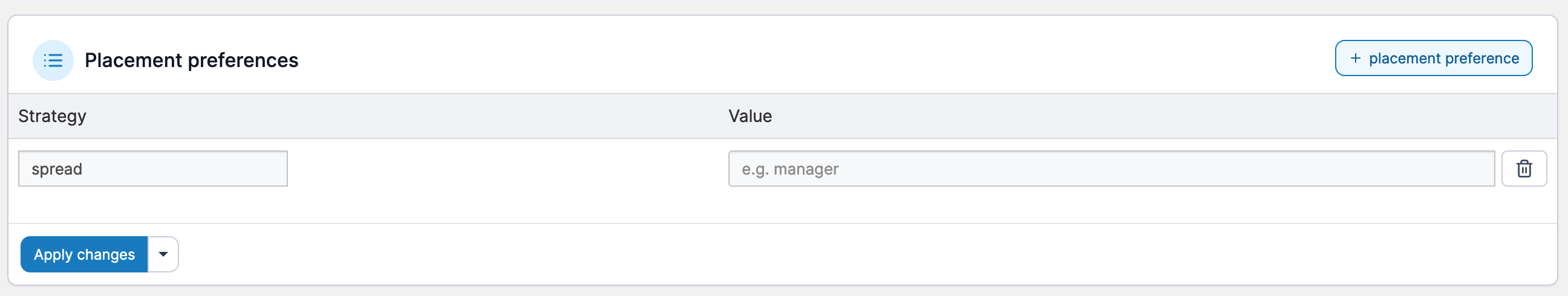

### Placement preferences

While placement constraints limit the nodes a service can run on, placement preferences attempt to place tasks on appropriate nodes in an algorithmic way (by default they are spread evenly).

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-2c042ed91728d182cb9a492a5f50248b183f8248%2F2.15-docker_services_service_placement_pref.png?alt=media" alt=""><figcaption></figcaption></figure>

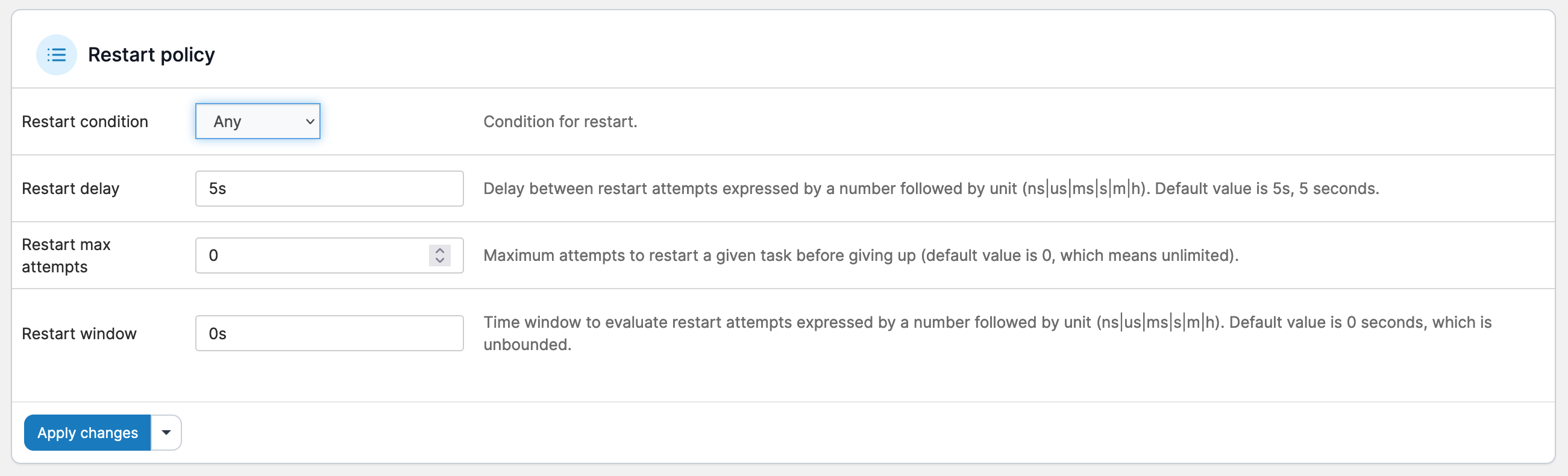

### Restart policy

Docker's restart policies ensure that linked containers are restarted in the correct order, and control the conditions under which they are restarted:

* **Any**: Restart the container under any conditions (restarted host or Docker daemon).
* **On Failure**: Restart the container if it exits due to an error which manifests as a non-zero exit code.
* **None**: Do not automatically restart the container.

You can also adjust the restart delay, maximum attempts and restart window.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-ba59e58d4221096e91a4aeda31b2df6410c99bba%2F2.15-docker_services_service_restart_policy.png?alt=media" alt=""><figcaption></figcaption></figure>

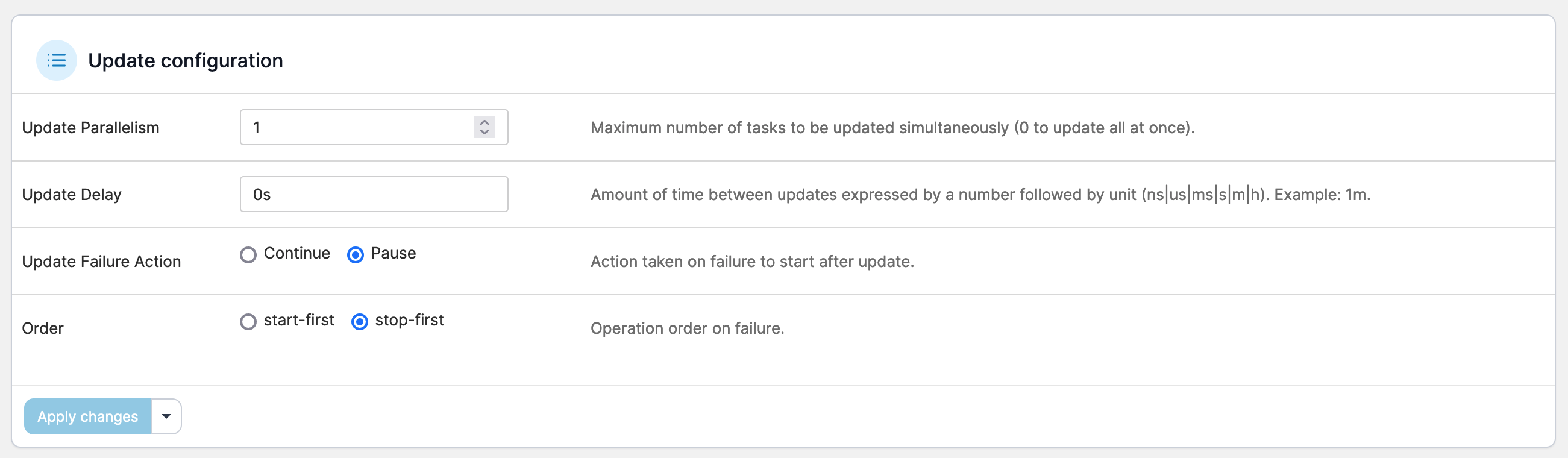

### Update configuration

Updates a service according to the parameters you specify. The parameters specified here are the same as `docker service create` (see [Docker's own documentation](https://docs.docker.com/engine/reference/commandline/service_create/) for more information).

Normally, updating a service will only cause the service’s tasks to be replaced with new ones if a change to the service requires recreating the tasks for it to take effect.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-7517935aeb9dc126f092d2926613dc66cddd592e%2F2.15-docker_services_service_update_config.png?alt=media" alt=""><figcaption></figcaption></figure>

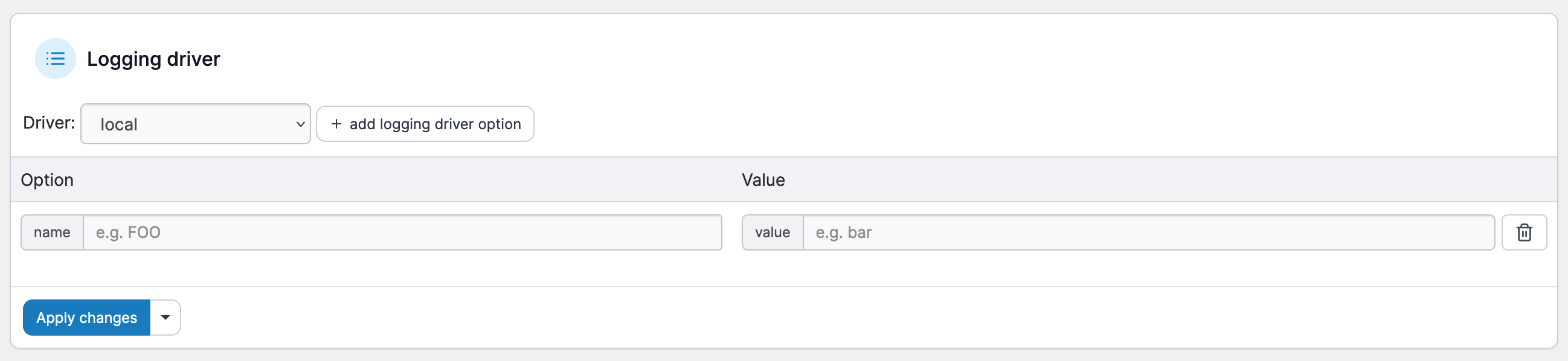

### Logging driver

Docker includes logging mechanisms called *logging drivers* that get information from the containers and services you're running. Each Docker daemon has a default logging driver which each container will use, unless you configure them to use a different logging driver.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-b0e638adeb936cc3311a0c8c92080018c7c37670%2F2.15-docker_services_service_logging_driver.png?alt=media" alt=""><figcaption></figcaption></figure>

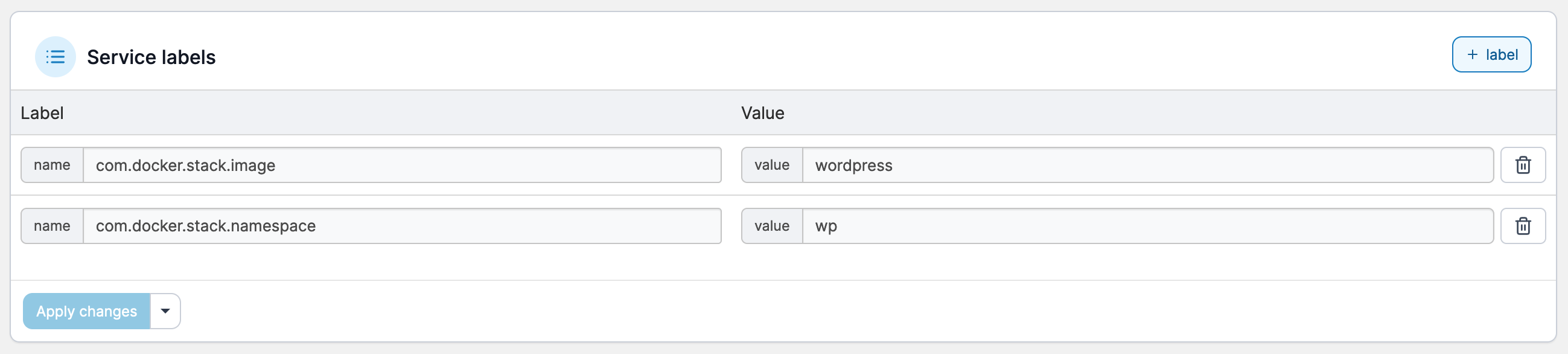

### Service labels

Lets you add metadata to containers using Docker labels either via an array or a dictionary. We recommend that you use reverse-DNS notation to stop labels from conflicting with those used by other software.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-eb58759c533d62636d0d9a6b979b8e4e7ba230d6%2F2.15-docker_services_service_labels.png?alt=media" alt=""><figcaption></figcaption></figure>

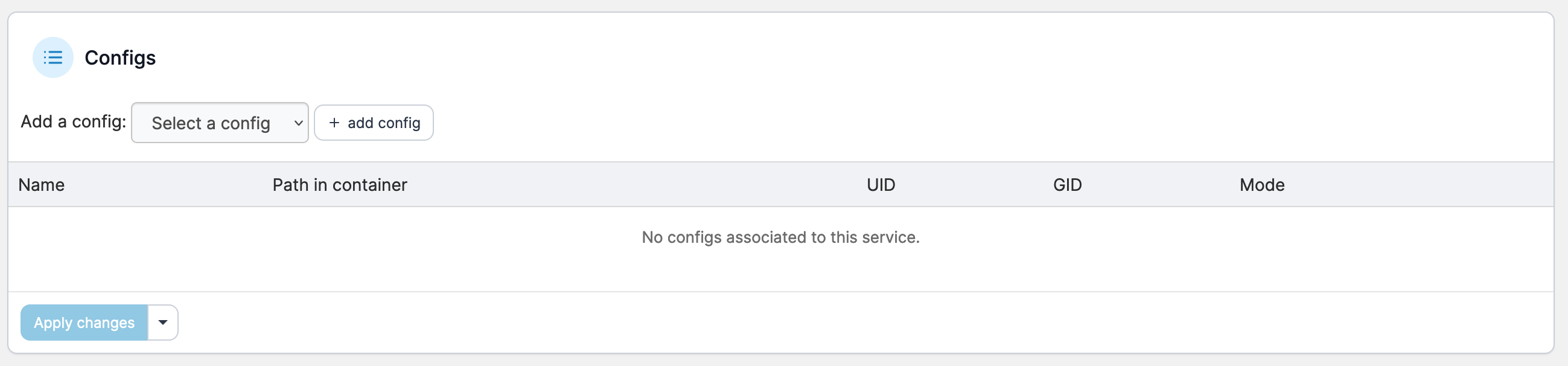

### Configs

Docker 17.06 introduced Swarm service configs. These allow you to store non-sensitive information such as configuration files outside a service’s image or running containers. This keeps images as generic as possible and removes the need to bind-mount configuration files into containers or use environment variables.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-295953f83733e5d6c301681ff3041a2b0d8ad886%2F2.15-docker_services_service_configs.png?alt=media" alt=""><figcaption></figcaption></figure>

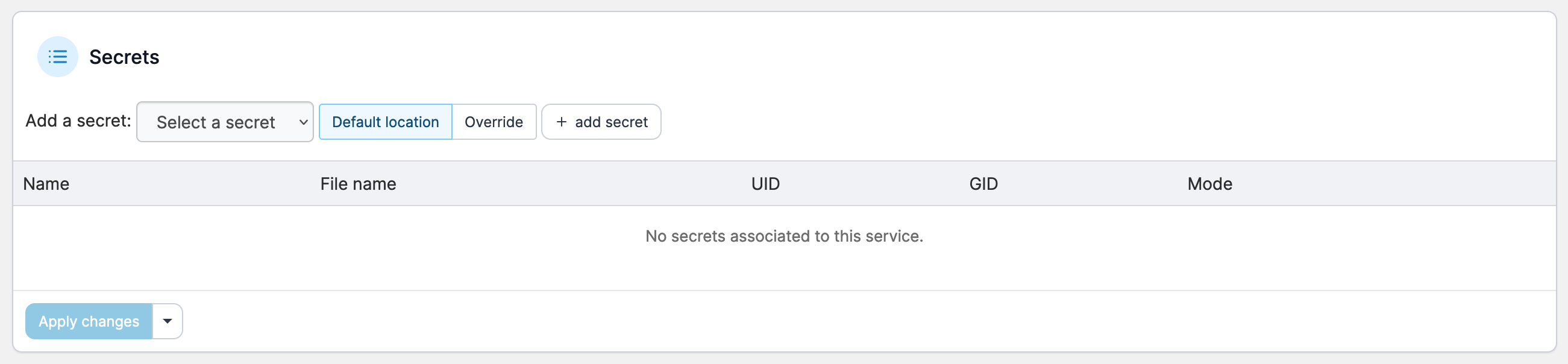

### Secrets

In the context of Docker Swarm services, a secret is a blob of data such as a password, SSH private key, SSL certificate, or another piece of data that should not be transmitted over a network or stored unencrypted in a Dockerfile or in your application’s source code.

<figure><img src="https://3850702872-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXI7douejaBgpZ6CP2zJf%2Fuploads%2Fgit-blob-29d66b6e7845a98046eabedf4c51c0a6f0098e3c%2F2.15-docker_services_service_secrets.png?alt=media" alt=""><figcaption></figcaption></figure>
